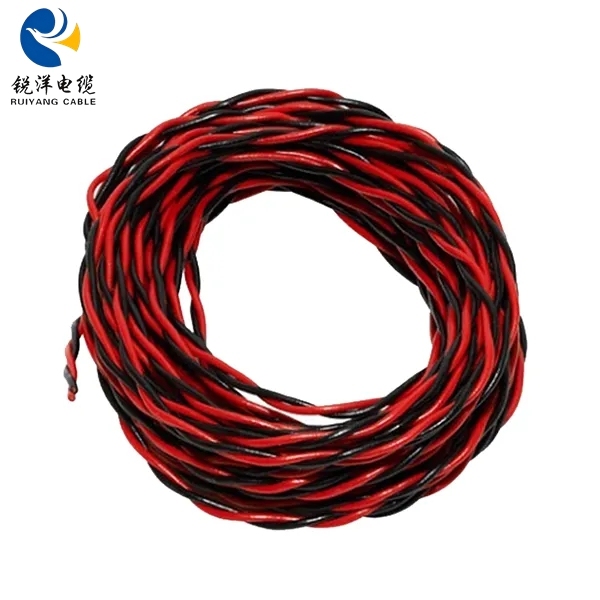

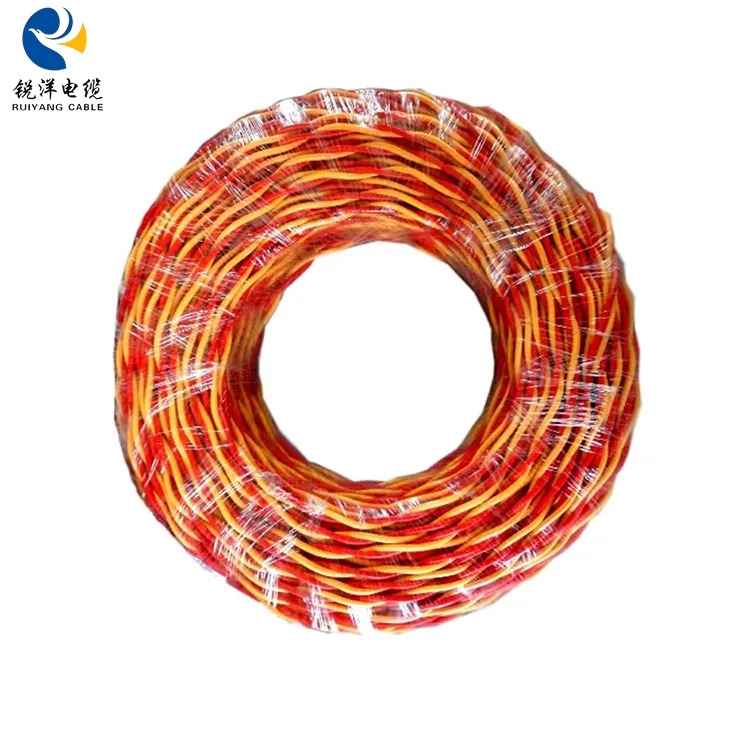

RVS Twisted-Pair Duplex Power Cable

Duplex Cable
ISO9001/ISO14001 /OHSAS18001/CCC
ODM&OEM
100m/Roll
Different colors
Buliding wire

Brand: Ruiyang Group
Product origin: Shenyang
Delivery time: 15 Working days after received payment
Supply capacity: 5000 Kilometers per Week

Information
Download

Detailed Description

The product is fit for a crated voltage 450/750V and below of domestic electrical appliances of smaller size electric tools,instruments,various meters and motorized lighting installations.

Use characteristics

1. Rated temperature: 70°C;

2. Rated voltage: 300/500V, 450V/750V ;

3. Tinned or bare stranded copper or copper clad aluminium wire conductor 0.5mm²~25mm^2;

4. RoHs PVC Insulation

5. Passed GB 18380.1 vertical flame test;

6. Uniform insulation thickness to ensureeasy stripping and cutting;

7. Resistant to acids, oil, alkali, moisture and fungus .

our service

1.Quickly and professional response;

2. China manufacturer with 8 years experience;

3. Excellent quality with reasonable price;

4. Sufficient support for our tendering representatives;

5. OEM service available based on official & legal authorization;

6. Strict quality control system;

7. Faster lead time than our competitors;

8. Cable solutions to your particular requirements;

9. Free sample is available with economic express fee;

10.12 months quality guarantee after delivery.

PVC insulation flexible wire(GB/T5023.3-2008)
Model	Name	Voltage(V)	Nominal section(mm2)	Number/diameter of core (mm)
RV	Copper core PVC insulation jointed flexible line	300/500	0.3 to 1.0	16/0.15 to 32/0.2
RV	Copper core PVC insulation jointed flexible line	300/500	1.5 to 10	30/0.25 to 80/0.30
RVB	Copper core PVC insulation paralled jonted flexible line	300/300	2×0.3 to 2×1.0	2×16/0.15 to 2×32/0.20
RVS	Copper core PVC insulation twisted joint flexible line	300/300	2×0.3 to 2×0.75	2×16/0.15 to 2×32/0.15
RVV	Copper core PVC insulation sheath paralled joint flexible line	300/500	2×0.75 to 5×2.5	2×24/0.2 to 5×49/0.25
RVVB	Copper core PVC insulation sheath paralled joint flexible line	300/300	2×0.5 to 2×0.75	2×16/0.2 to 2×24/0.2
RV-105	Copper core heat-resistance 105 PVC insulation joint flexible line	450/750	0.5 to 6	16/0.2 to 84/0.30

RVS 300/300V
Nominal section (mm²)	Number/diameter of core (mm)	Maximum outer diameter (mm²)	Reference weight(Kg/Km)
2*0.3	2*16/0.15	4.3	12.8
2*0.4	2*23/0.15	4.6	16.2
2*0.5	2*28/0.15	5.8	22.9
2*0.75	2*42/0.15	6.2	19.6
